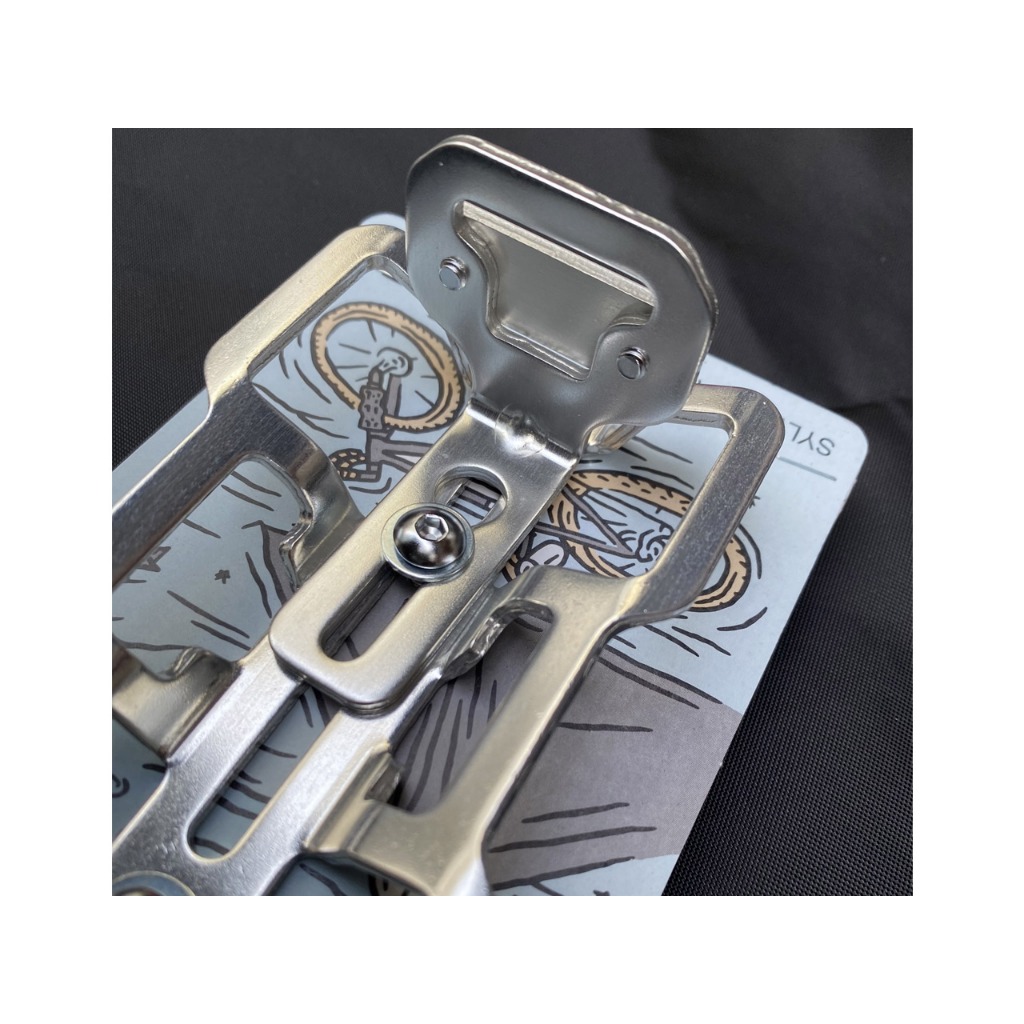

The SYLVAN CARGO CAGE is designed primarily for carrying cylindrical luggage such as bottles or dry sacks on a bicycle.

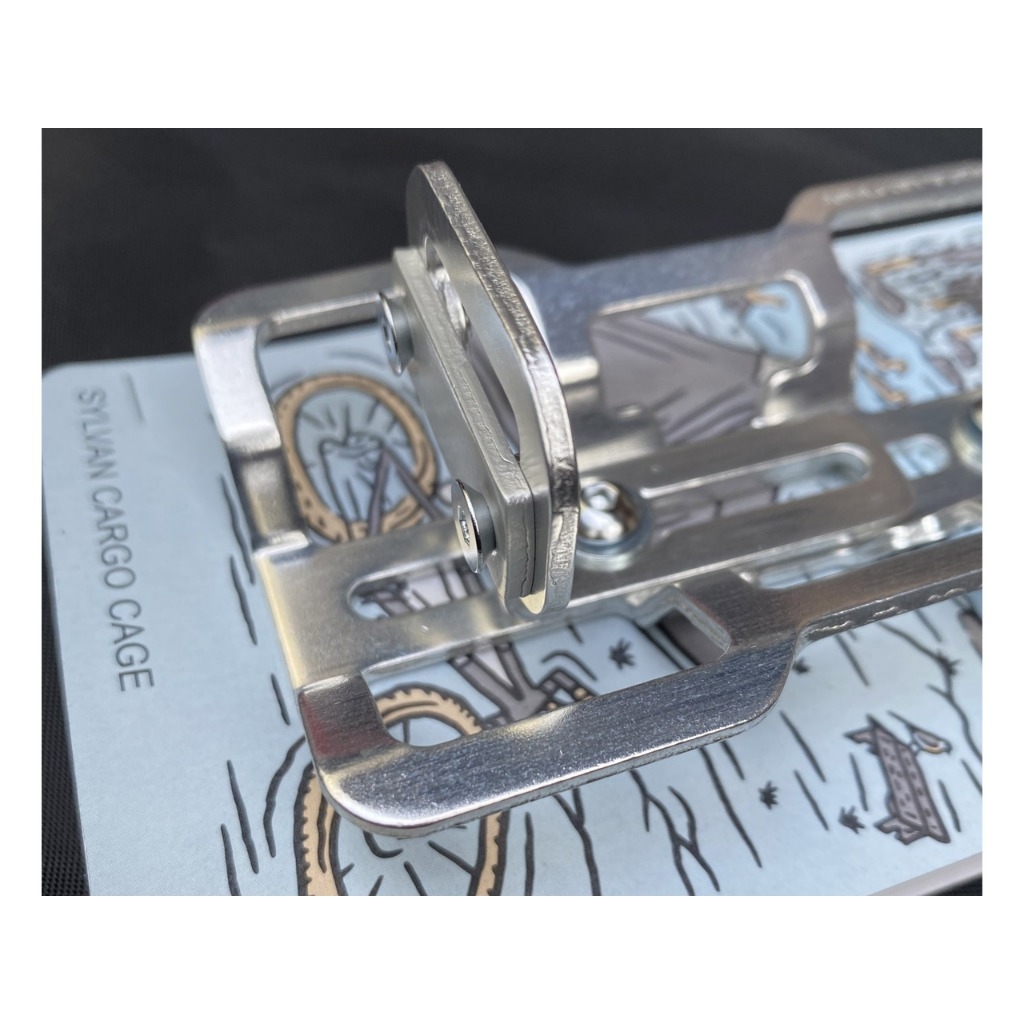

It can be attached to 2- or 3-bolt accessory mounts on the frame or front fork to easily increase the carrying capacity of your bicycle. The L-shaped bottom plate is used for different applications. With the bottom plate co-tightened (A), it offers excellent performance when carrying heavy objects such as water-filled bottles, while with the bottom plate removed (B), it can compactly secure long objects.

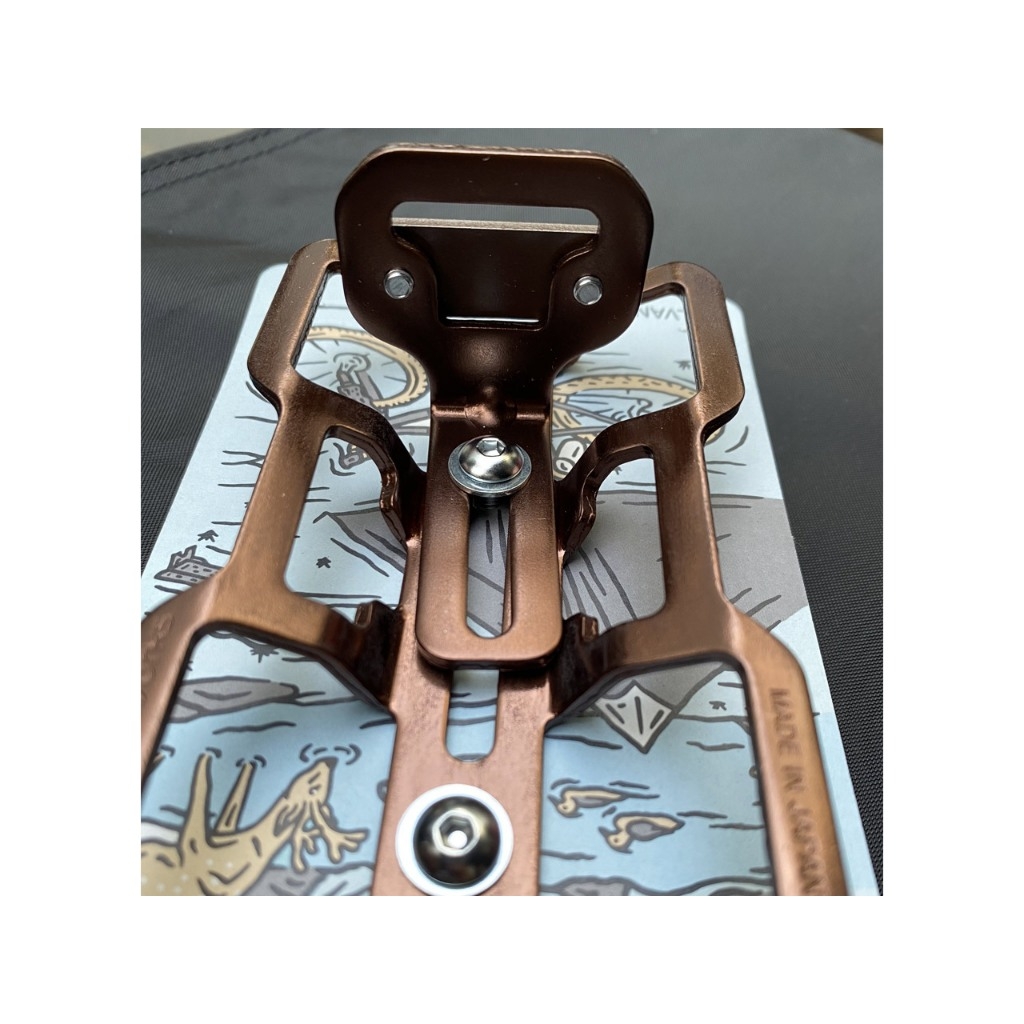

The bottom plate has two M4 threaded holes with a 25mm pitch. After installing the CAGE on the front fork, you can use the bottom plate and mounting bracket (sold separately) to mount a front light, etc. (C).
*Straps are separately required to secure cargo to the CARGO CAGE.
*If you are concerned about the screws sticking out from the top surface of the bottom plate when installing the mounting bracket (sold separately),
please use the included 2-hole spacer.
Cân nặng:
- Body: 45g
- Bottom plate: 14g
- 2-hole spacer: 3g
- Size: 65mm×177mm×19mm (Bottom plate protrusion 42mm)

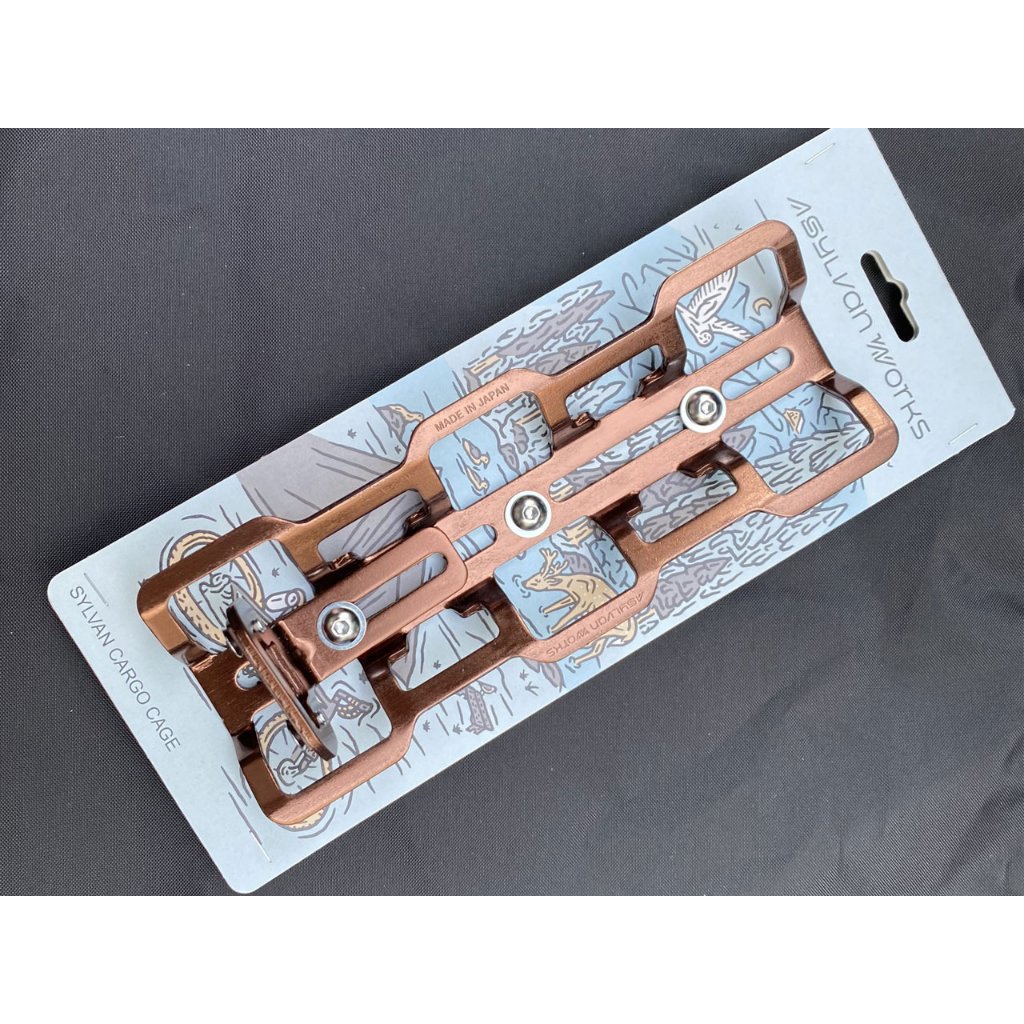

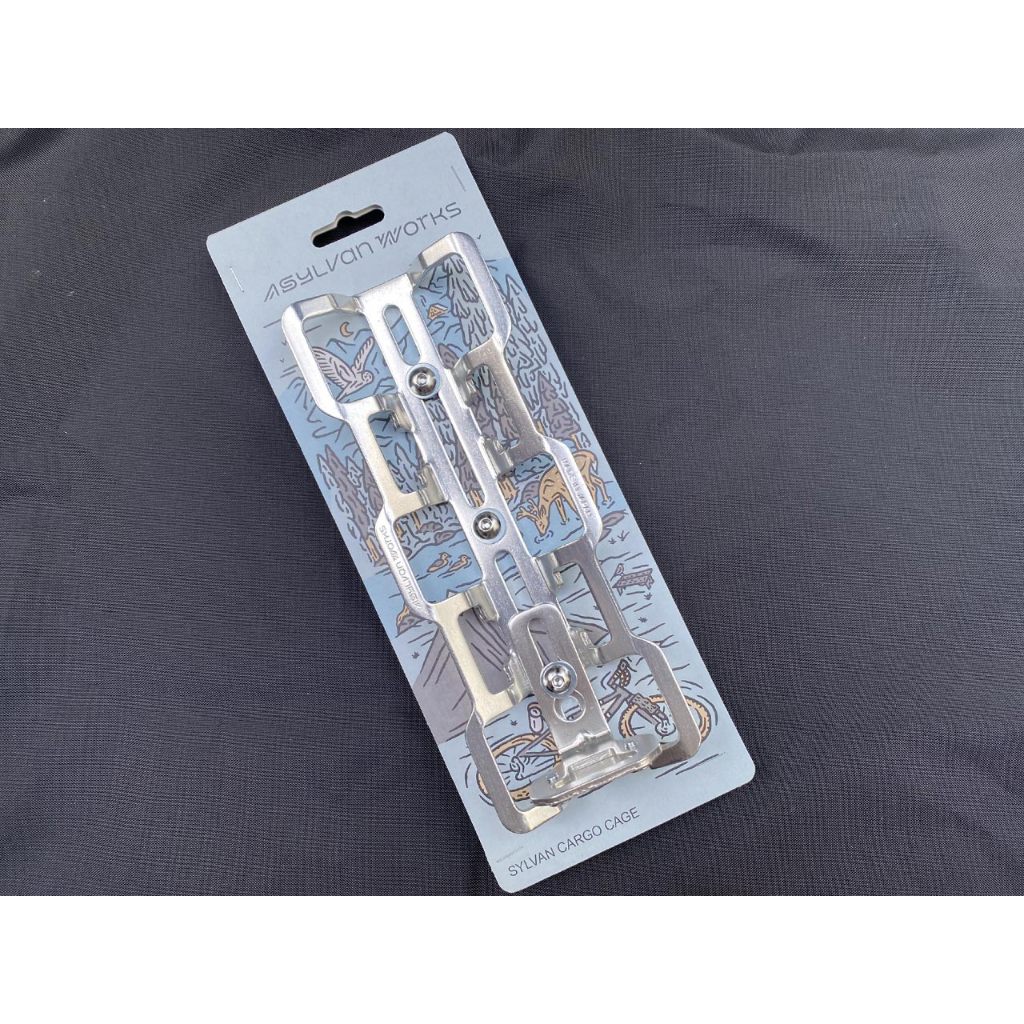

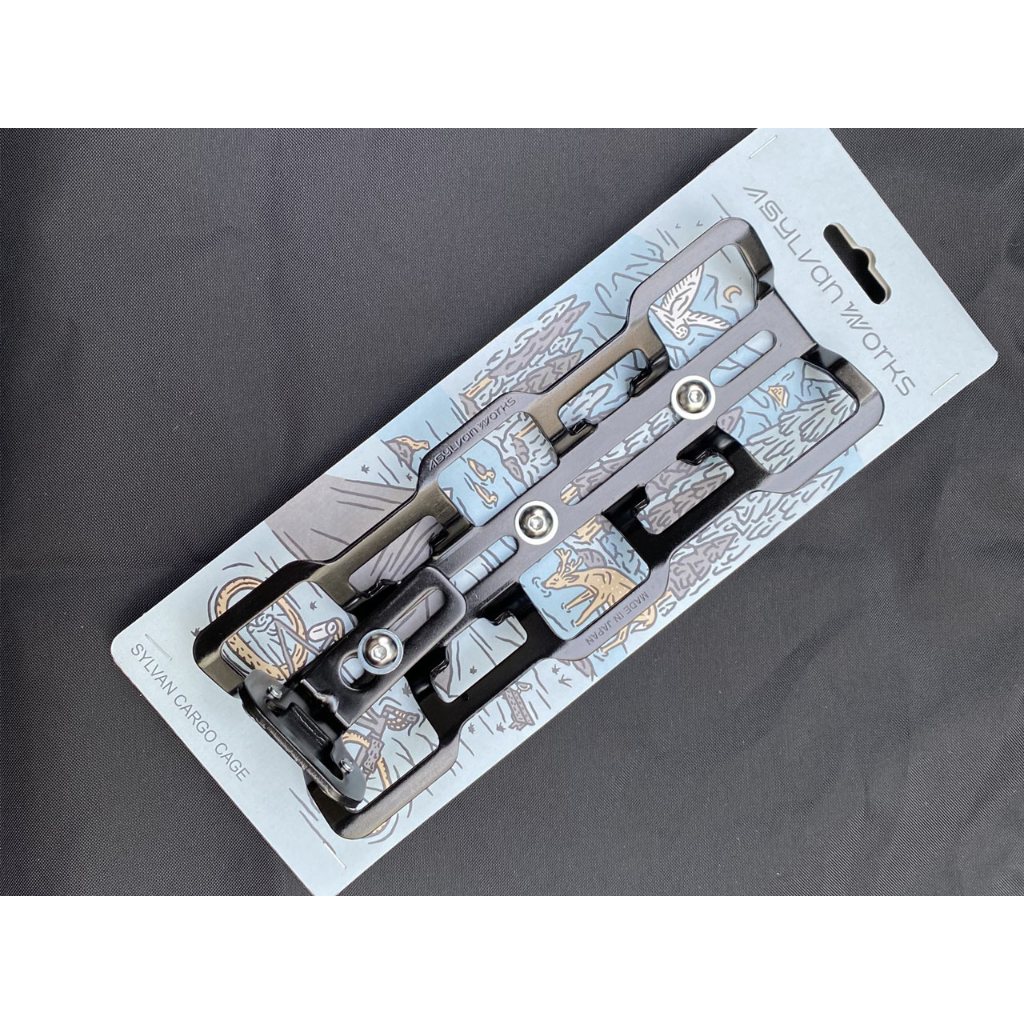

- Package: Mounted on original cardboard
- Size 90mm*235mm*60mm
Sản phẩm bao gồm:
- SYLVAN CARGO CAGE (Body, Bottom plate, 2-hole spacer)
- M5 bolt ×3
- M5 washer ×3
- M4 countersunk bolt ×2
