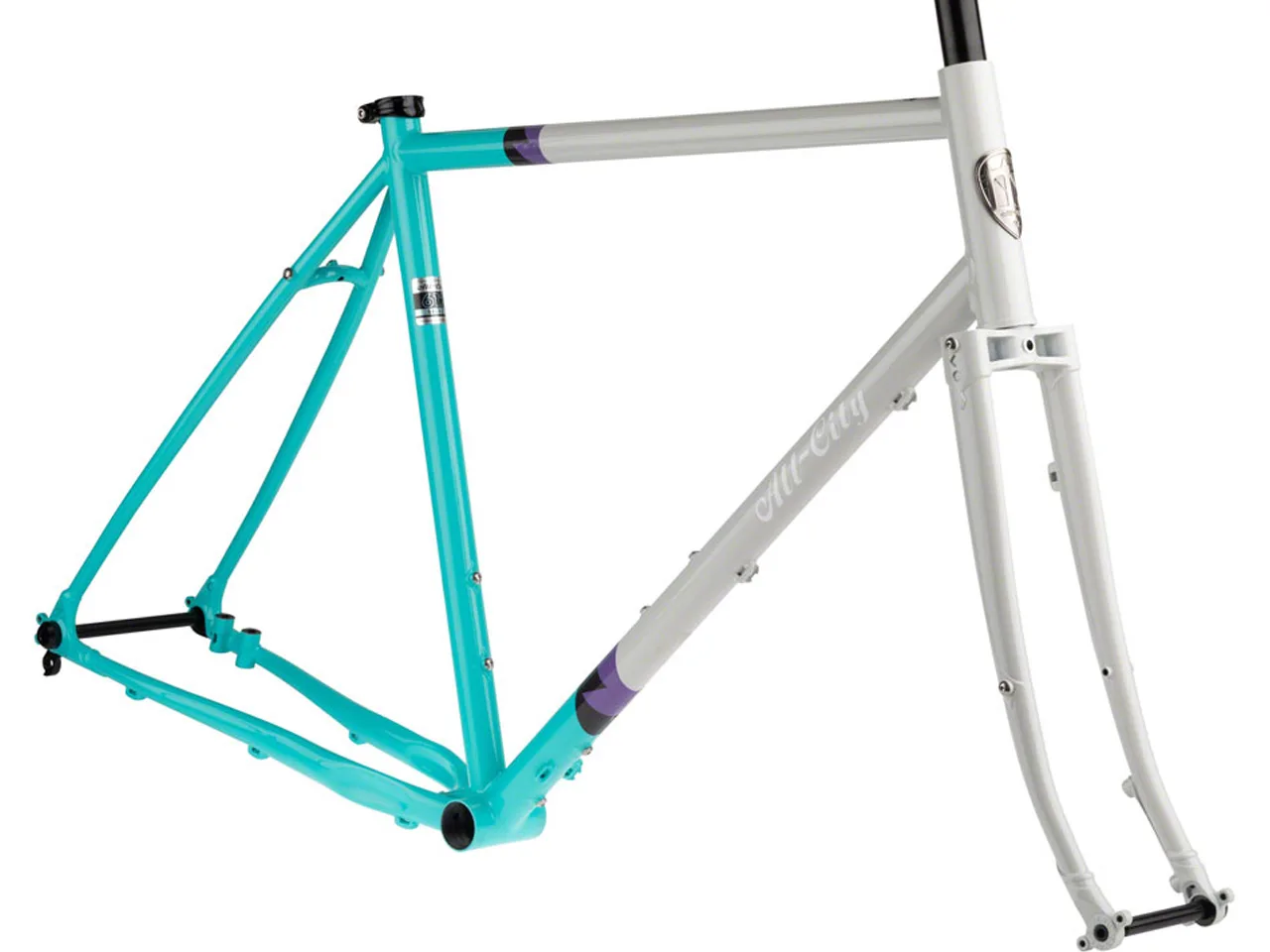

Khung Xe Đạp All-City Gorilla Monsoon Frameset được thiết kế để sử dụng hàng ngày. Loại khung này được xây dựng trên cross geometry đã được chứng minh và thử nghiệm hoàn hảo của All-City trong touring.
Thông số kĩ thuật:
- Frame Construction: 612 Select Chromoly Steel, TIG Welded and Brazed, E.D. Coated
- Fork Construction: 612 Select Chromoly Steel, All-City Signature fork ends, Bi-Wing Crown, TIG Welded and Brazed, E.D. Coated
- Rear Dropout Configuration: All-City Signature Dropout
- Rear Hub Spacing: 142 x 12mm thru-axle
- Rear Axle Dimensions: Ø 12 x 163mm, TP=1.5, TL=12
- Rear Brake: Flat Mount, 140–160mm
- Front Brake: Flat Mount, 140–160mm
- Head Tube: Ø34mm (1 1/8")
- Steerer Tube: Ø28.6mm (1-1/8")
- Crown Race: Ø30mm (1-1/8")
- Stock Headset Upper (S.H.I.S.): EC34/28.6
- Stock Headset Lower (S.H.I.S.): EC34/30
- Seat Collar: All-City Shot Collar, 30mm
- Seatpost: 27.2mm
- Dropper Compatible (Routing): Internal dropper post routing compatible
- Front Derailleur (Clamp): 28.6
- Front Derailleur Type: Band Clamp
- Max Chainring (CL)[3]: 1x: 42t max
- Bottom Bracket: 73mm English
- Design Wheel/Tire Sizes: 27.5 x 2.4"
- Tire Clearance Frame [1]/[2]: 27.5 x 2.4", 700c x 42mm
- Tire Clearance Fork [1]: 27.5 x 2.4", 700c x 42mm
- Alternate Wheel-Tire Sizes: 700c x 42mm
- Rigid Fork Spec: Gorilla Monsoon
- Fork Offset: 43cm~49cm, 50mm Offset; 52cm~61, 47mm Offset
- Front Hub Spacing: 100 x 12mm; thru-axle
- Front Axle Dimensions: Ø12 x 120mm , TP=1.5, TL=12
- Front Brake (Rotor): 140–160mm
- Bottle Mounts Frame: Two inside frame, one under down tube, all sizes
- Bottle Mounts Fork: None
- Downtube Accessory Mounts: None
- Rack Mounts Frame: Yes
- Rack Mounts Fork: Yes
- Fender Mounts Frame: Yes
- Fender Mounts Fork: Yes
- Other Features: E.D. Coating on frame and fork for rust prevention

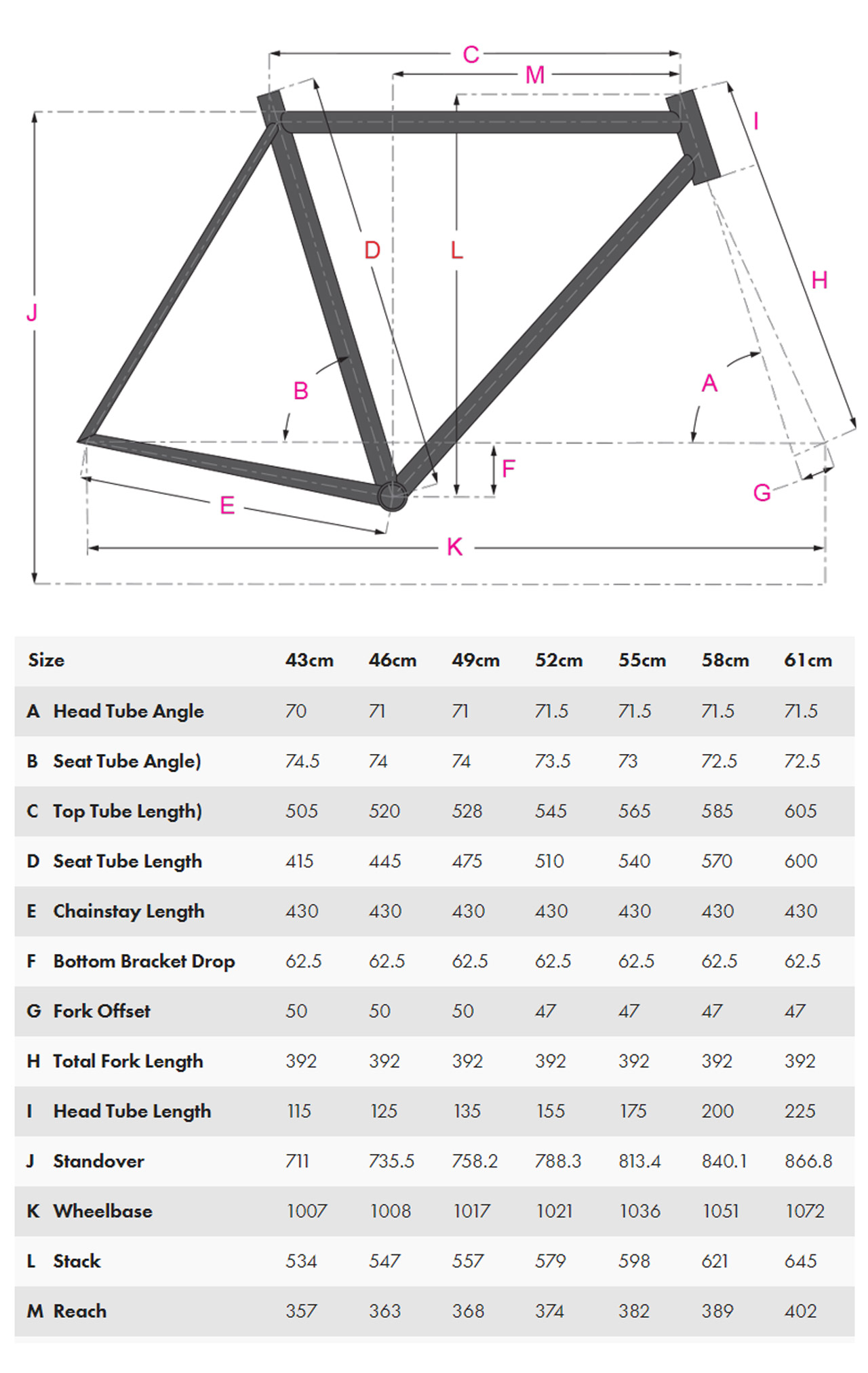

Geometry:
